Low Pressure Electric Vertical Hot Melt Adhesive Injection Molding Machine with Pump Motor Engine Single Slide Table JTT-300D
Produktdetails:
| Herkunftsort: | Guangdong, China |
| Markenname: | JINTONG |
| Modellnummer: | JTT-300D |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | $22,500-25,000 |
|
Detailinformationen |
|||
| Kunststoffverarbeitet: | Schmelzklebstoff | Stil: | Vertikale |
|---|---|---|---|
| Plastifizierung die Kapazität (g/s): | 100 | Schimmelhöhe ((mm): | 300 - 400 mm |
| Ejektor-Zahl: | 1 | Ejektor-Anschlag (Millimeter): | 35 |
| Ausstoßkraft ((kN): | 5 | Theoretisches geschossenes Volumen (cm-³): | 85 |
| Einspritzungs-Rate (g/s): | 25 | Maschinentyp: | Elektrisch |
| Injektionsgewicht (g): | 140 | Schraubendurchmesser (mm): | 8 |
| Entfernung zwischen den Tie-Bars: | 200 | Gewicht (kg): | 1700 |
| Offener Hub (mm): | 300 | Leistung (kW): | 8.4 |
| Garantie: | 1 Jahr | wichtige Verkaufsargumente: | Einfach zu bedienen |
| Maschinenprüfbericht: | Bereitgestellt | Video-Ausgangskontrolle: | Bereitgestellt |
| Kernkomponenten: | Lager, Motor, Pumpe, Druckbehälter, Motor | Eröffnungsstrich: | 150mm |
| Kundendienst bereitgestellt: | Ingenieure stehen für die Wartung von Maschinen im Ausland zur Verfügung | Zylinderdurchmesser: | 8*1600 |
| Einspritzdruck: | 1-4 kg/cm2 | Produktname: | Maschine zur Spritzgießung von Kunststoffen unter niedrigem Druck |
| Öffnungskraft: | 0,5 t | Plattengröße: | 780*300mm |
| maximal offenes Tageslicht: | 140mm | Min alte Höhe: | 360mm |
| Ejektorkraft: | 0.1T | ||
| Hervorheben: | low pressure electric injection molding machine,vertical hot melt adhesive molding machine,single slide table injection molding machine |
||
Produkt-Beschreibung
Get the Hightlights

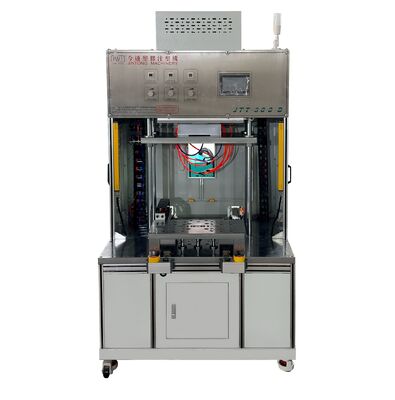

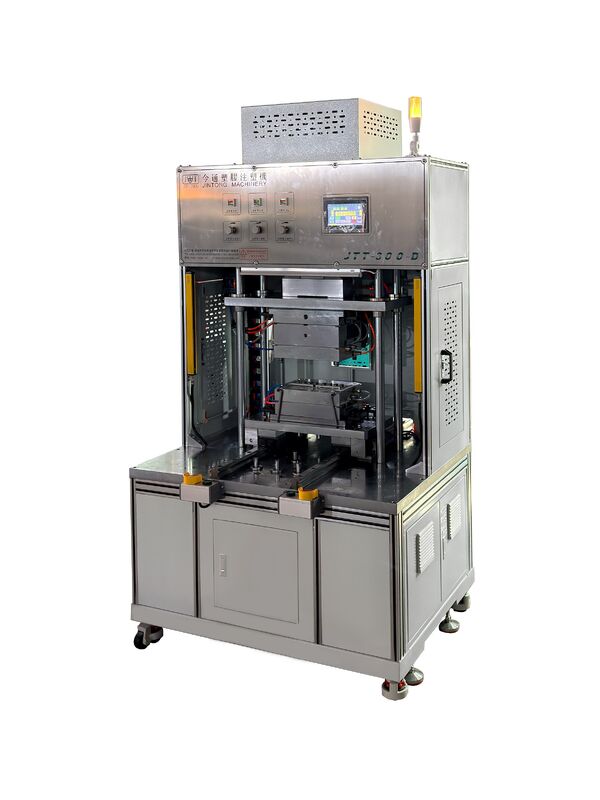

- Low Pressure Electric Vertical Hot Melt Adhesive Injection Molding Machine with Single Slide Table JTT-300D
- Clamping Force: 15T
- Vertical injection system, vertical clamping system.
- two separate melting tank with machine Hot melt adhensive begins from gear pump, pass valves to nozzle
- Nozzle connected to melting tank, injection unit back and forward by air.
- Melt tank made from aluminum alloy, precision machining then coated with Teflon, heating evenly and rapidly and clean easily.
- Equipped with Eject system driven by air cylinder
- Two PID thermal temperature control zones (Melting tank and nozzle)
- Two tie bar design for molding small parts, operation easily. 220V single phase voltage, Energy saving, low pollution and no oil leakage risk
DETAIL SHOT
ABOUT THE SUPPLIER
Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.
COMPANY OVERVIEW
COMPETITIVE ADVANTAGES
FACTORY PROFILE
CUSTOMIZATION CAPABILITIES
PRODUCTION WORKFLOW
TRADE SHOW PARTICIPATION
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
Q: Are you trading company or factory?
A: We are factory to produce vertical injection molding machine more than 20 years.
Q: What is your delivery time?
A: Standard machine lower than 45T, 10-15 days; big machine 25-45 days
