Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | JINTONG |
| Zertifizierung: | ISO9001 CE |
| Modellnummer: | JTT-2000R |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Stück |
|---|---|
| Preis: | $62,000-66,000 / piece |
|
Detailinformationen |
|||
| Klemmkraft: | 200t | Injektionsgewicht: | 456-662g |
|---|---|---|---|
| Ejektorschlag: | 75 mm | Ejektorkraft: | 48 kN |
| Schussvolumen: | 678 cm3 | Injektionsrate: | 212 g/s |
| Schraubdurchmesser: | 60 mm | Abstand zwischen den Bindestangen: | 760 mm |
| Maschinengewicht: | 12000 kg | Schlaganfall öffnen: | 600 mm |
| Leistung: | 44.3 kW | Schneckenhub: | 260 mm |
| Öffnungskraft: | 22.4t | Drehtabellen-Durchmesser: | 1500 mm |
| Maschinenabmessungen: | 3.0*2,2*3,6 m | ||
| Hervorheben: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
Produkt-Beschreibung

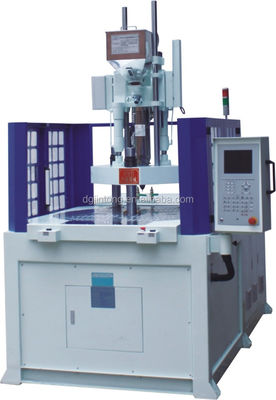

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
