Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume
Produktdetails:
| Herkunftsort: | Guangdong, China |
| Markenname: | JINTONG |
| Modellnummer: | JTT-850R |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Stück |
|---|---|
| Preis: | $26,000-27,000 / piece |
|
Detailinformationen |
|||
| Plastifizierungskapazität: | 180 g/s | Form-Höhe: | 110 - 450 mm |
|---|---|---|---|
| Ejektor-Zahl: | 2 | Ejektorschlag: | 75 mm |
| Ejektorkraft: | 33 kN | Theoretisches Schussvolumen: | 276 cm3 |
| Injektionsrate: | 167 g/s | Injektionsgewicht: | 330 gr |
| Schraubengeschwindigkeit: | 1 bis 200 Rpm | Schraubdurchmesser: | 50 mm |
| Schraube L/D -Verhältnis: | 25 | Entfernung zwischen den Tie-Bars: | 560 mm |
| Gewicht: | 4000 kg | Schlaganfall öffnen: | 500 mm |
| Leistung: | 21.6 kW | ||
| Hervorheben: | 85T Vertical Injection Molding Machine,33 kN Ejector Force Rotary Injection Molding Machine,276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine |
||
Produkt-Beschreibung
Full-auto Vertical Rotary Injection Molding Machine 85T
Product Description
Model: JTT-850R
Clamping Force: 85T
Injection Weight: 165-272g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be adjusted according to actual demand
- Available in 2 stations, 3 stations, or multi-station configurations (one up die, two or four down die)
- Easy operation for insert parts, improves productivity
Certifications

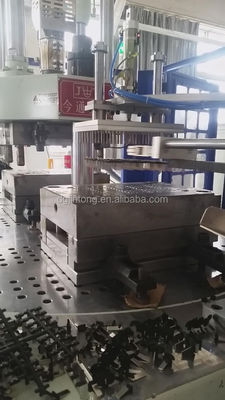

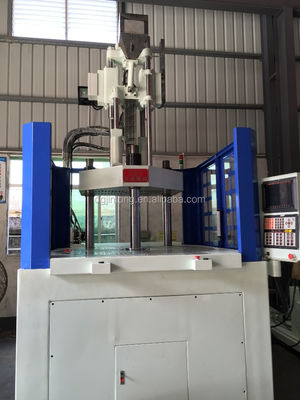

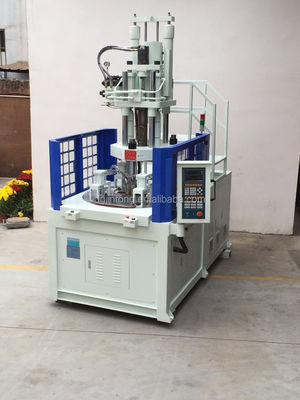

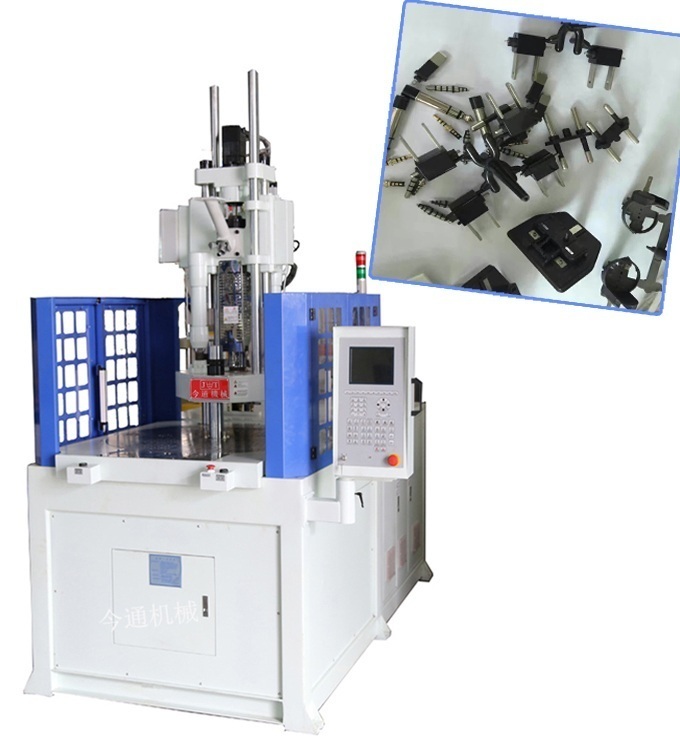

Detailed Images
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Saves 55% cooling water quantity compared to similar products
- Low noise: Optimized motor working condition with imported bearing and oil pump reduces noise by 15-20db
- Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
17 years of customer service experience with a systematic and standardized service process. We maintain a 24-hour response mechanism to promptly solve customer problems and provide excellent service.
Packing & Delivery
