Detailinformationen |
|||
| Plastifizierungskapazität: | 400 g/s | Form-Höhe: | 260 - 530 mm |
|---|---|---|---|
| Ejektorschlag: | 75 mm | Ejektorkraft: | 34 kN |
| Schussvolumen: | 570 cm3 | Injektionsrate: | 202 g/s |
| Injektionsgewicht: | 513 g | Schraubengeschwindigkeit: | 1 - 155 U/min |
| Schraubdurchmesser: | 55 Millimeter | Schraube L/D: | 28 |
| Abstand zwischen den Bindestangen: | 660mm | Maschinengewicht: | 7000 kg |
| Schlaganfall öffnen: | 500 mm | Leistung: | 22 kW |
| Maschinenabmessungen: | 2,8*2,1*3,4 m | ||
| Hervorheben: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
Produkt-Beschreibung

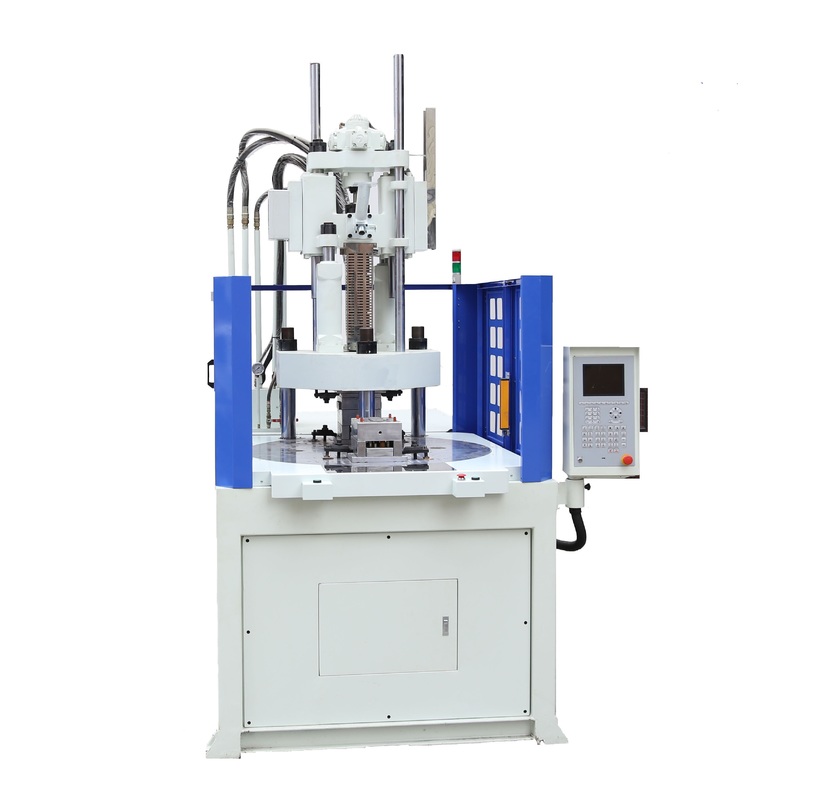

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)
Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
