Detailinformationen |
|||
| Plastifizierungskapazität: | 150 g/s | Form-Höhe: | 160 - 300 mm |
|---|---|---|---|
| Ejektor-Zahl: | 2 | Ejektorschlag: | 60 mm |
| Ejektorkraft: | kN 1,8 | Theoretisches Schussvolumen: | 170 cm3 |
| Injektionsrate: | 113 g/s | Injektionsgewicht: | 141 gr |
| Schraubengeschwindigkeit: | 0 bis 215 U/min | Schraubdurchmesser: | 40 mm |
| Schraube L/D -Verhältnis: | 22 | Entfernung zwischen den Tie-Bars: | 510 Millimeter |
| Gewicht: | 2400 Kilogramm | Schlaganfall öffnen: | 540mm |
| Leistung: | 12,8 KILOWATT | ||
| Hervorheben: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Produkt-Beschreibung

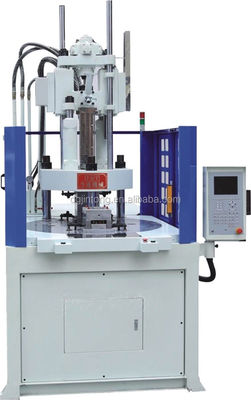

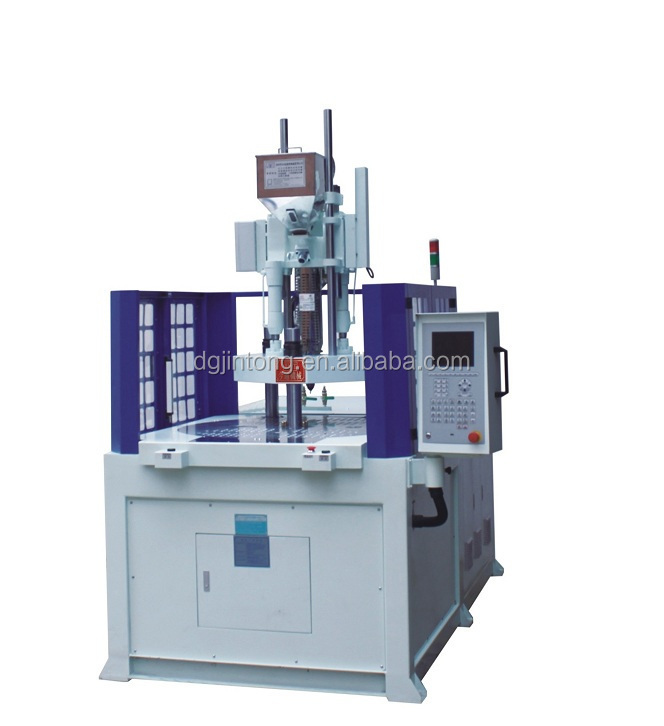

Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages

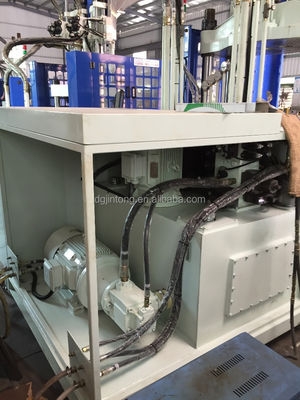

Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
